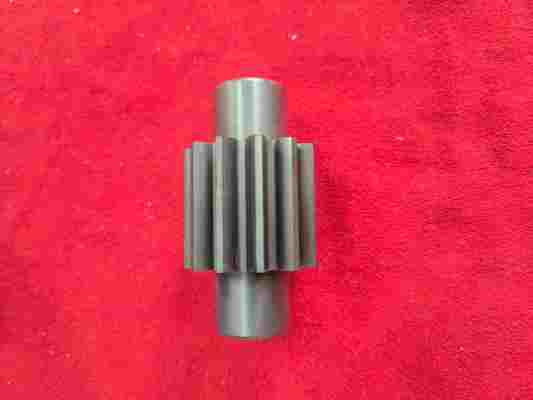

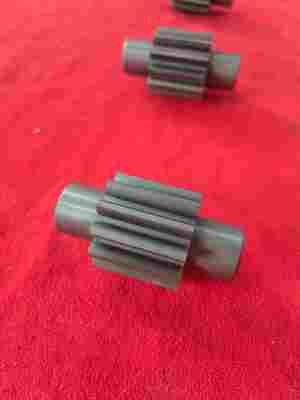

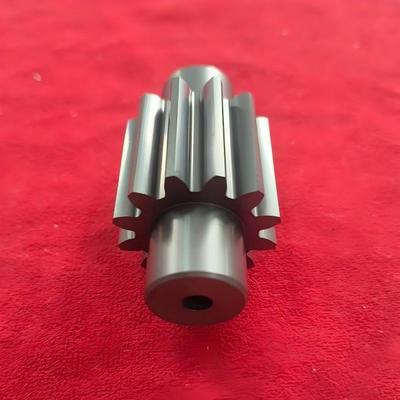

Customized Ceramic Gear Shaft Used For Gear Pump

  • Customized Ceramic Gear Shaft Used For Gear Pump
  • Customized Ceramic Gear Shaft Used For Gear Pump
  • Customized Ceramic Gear Shaft Used For Gear Pump
  • Customized Ceramic Gear Shaft Used For Gear Pump
Lieu d'origine Chine
Nom de marque CSQ
Certification FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Numéro de modèle Personnalisé
Quantité de commande min 20-50 PCs (négociables)
Prix negotiable
Détails d'emballage Foam+Carton
Délai de livraison Environ 30 à 45 jours ouvrables
Conditions de paiement T / t, paypal
Capacité d'approvisionnement 2000pcs par mois

Contactez-moi pour des aperçus gratuits et des bons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Nom du produit Arbre d'engrenage en céramique Matériel Céramique SSIC SI3N4 AL2O3 ZRO2
Résistance à la corrosion Haut Application Pompe
Modèle Personnalisation Résistance à l'abrasion Haut
Se résistance à l'usure Haut densité Haut
Mettre en évidence

High Density Ceramic Gear Shaft

,

Semiconductor Manufacturing Ceramic Gear Shaft

,

Machine Components Ceramic Gear Shaft
Vous pouvez cocher les produits dont vous avez besoin et communiquer avec nous dans le babillard électronique.
Laisser un message
Description de produit
Customized Gear Shaft Advanced Structural Ceramics For Industrial
Product Overview

The Silicon Carbide Gear Shaft is an advanced ceramic component manufactured from high-performance Silicon Carbide. This monolithic design integrates a gear with a shaft, combining the exceptional properties of SiC—including extreme wear resistance, corrosion resistance, high rigidity, and lightweight characteristics—to address the challenges of wear, corrosion, and lubrication faced by traditional metal gear shafts in harsh operating environments.

Working Principle
As a core component in drive systems, the SiC gear shaft transmits torque and motion efficiently through its precision-machined teeth meshing with a mating gear. Its superior performance stems from the material's intrinsic properties:
  • Superior Hardness & Wear Resistance: Significantly extends service life in abrasive conditions.
  • Low Friction Coefficient: Ensures smooth operation with various counter materials, approaching self-lubrication in certain applications.
  • High Stiffness: Minimal deformation under load guarantees transmission accuracy and stability.
  • Thermal Stability: Maintains excellent dimensional stability and mechanical strength at high temperatures.
Technical Specifications
Max Temperature up to 1650℃
Low density 3.15-3.18 g/cm3
Low thermal expansion 4.0 (10-6/℃)
High thermal conductivity 120 W/m°K
High hardness 2800 HV5
High elastic modulus 410GPa
Chemical stability Superior resistance to acid and alkali corrosion (including hydrofluoric acid)
Abrasion Resistance High
Feature Corrosion-resistance, Low Friction, Wear-resistance, Hardness, Longer Life
Ceramic Shaft Advanced Structural Elements
High-Efficiency Ceramics Yes
Applications

Our Advanced Structural Ceramics (brand CSQ) are customized products certified by FDA, REACH, ROHS, ISO9001, ISO14001, and ISO45001. These high-performance ceramics are widely used in aerospace, automotive, electronics, medical, and other demanding applications due to their superior abrasion and corrosion resistance.

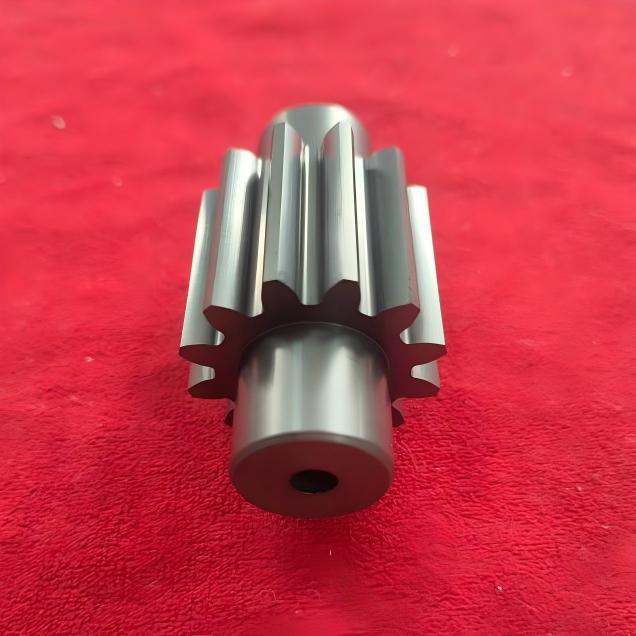

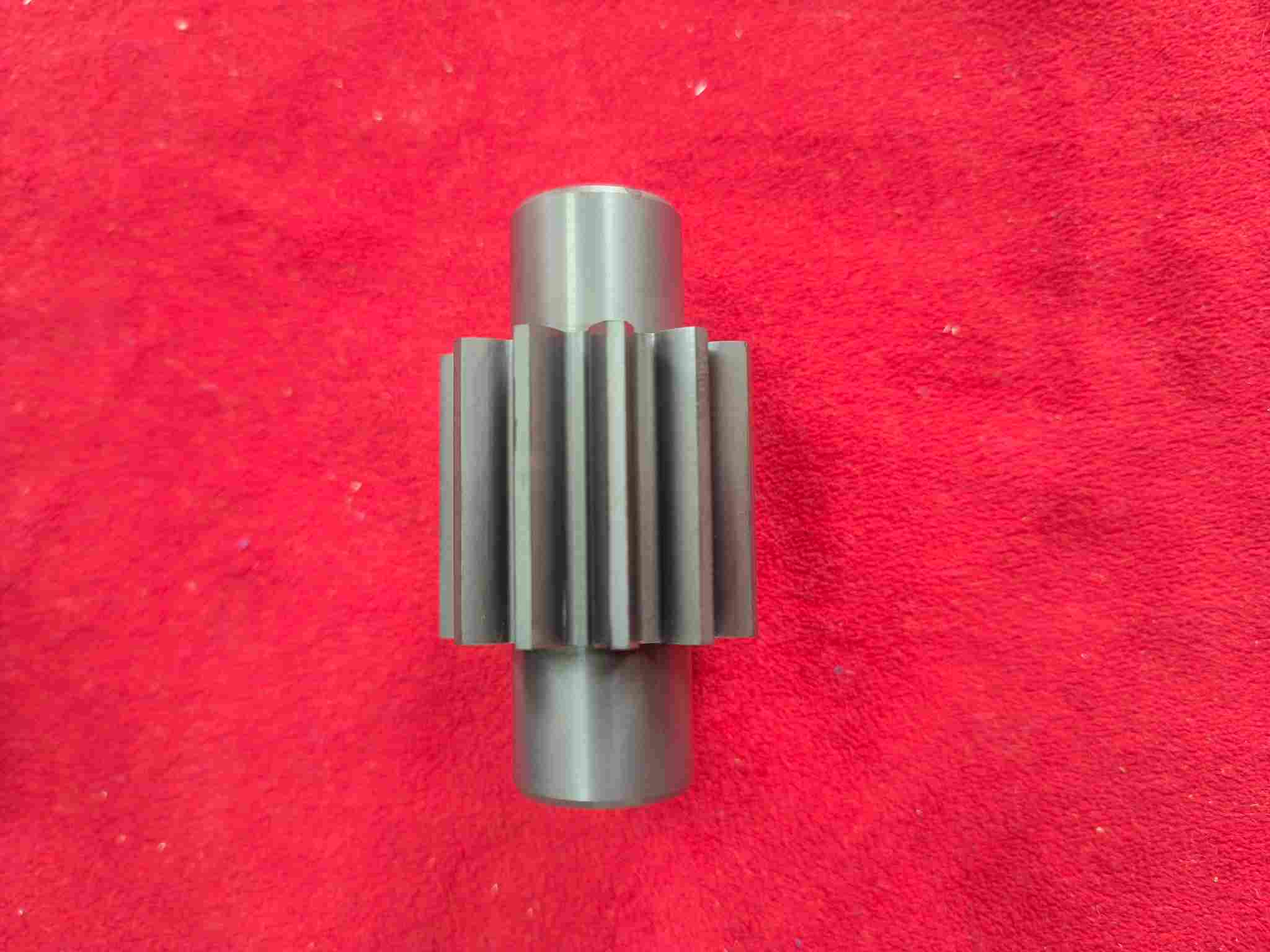

Customized Ceramic Gear Shaft Used For Gear Pump 0  Customized Ceramic Gear Shaft Used For Gear Pump 1

Customization Options

We offer fully customized Advanced Structural Ceramics made from high-efficiency materials including silicon carbide and zirconia. Our products feature excellent chemical resistance, high density, and exceptional durability for various applications including ceramic structures, shafts, and bearings.

Why Choose Our Advanced Structural Ceramics
Professional Team

With our brands ZXSQ and CSQ, we hold eleven invention patents for utility models. Our professional team of dozens of members provides high-quality customized bearing solutions. Since 1982, we've accumulated over 40 years of experience in ceramic bearing material research and development, becoming a leading enterprise in China's ceramic bearing and material products market.

Manufacturing Strength

Our facility features a fully automatic grinding and assembling production line with an annual output of 3 million sets. We specialize in producing various rolling bearings and ceramic components with P5 and P4 precision levels. Equipped with industry-leading firing technology including a hot isostatic sintering furnace (HIP) from ABB Sweden, our production capabilities reach temperatures exceeding 2000℃.

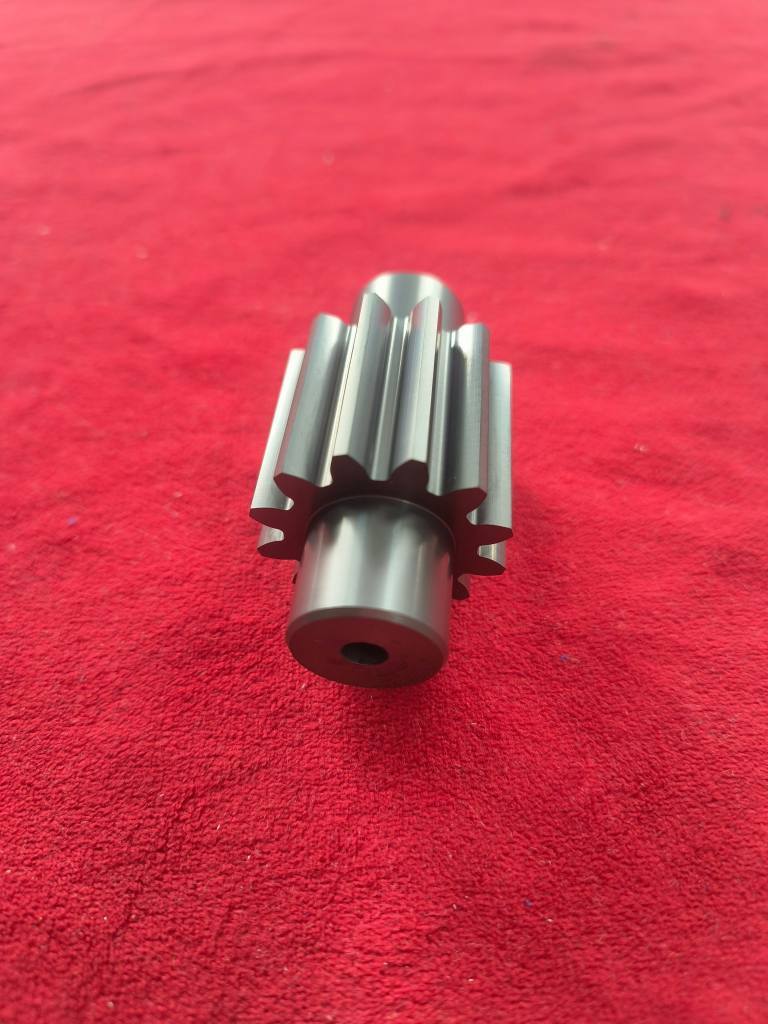

Customized Ceramic Gear Shaft Used For Gear Pump 2
Frequently Asked Questions
Q: Who are we?

A: We are a factory in Beijing, China with over 40 years of experience in ceramic bearing production, maintaining cooperative relationships with numerous domestic and international companies.

Q: How do we guarantee quality?

A: We produce samples before mass production, strictly follow customer requirements, conduct precise inspections, and use foam+carton double packaging to ensure product quality.

Q: What products do we offer?

A: We provide ceramic deep groove ball bearings, angular contact ball bearings, hybrid ceramic ball bearings, linear bearings, and various ceramic balls.

Q: Why choose us over other suppliers?

A: As an integrated industry and trade company with three factories, we offer superior production capabilities, better delivery dates, and higher product quality.

Q: What services do we provide?

A: We offer high-quality products, full customization according to user needs, and sample provision for customer confirmation.

We prioritize customer needs and strive to provide quality products and after-sales service. Welcome to discuss potential cooperation!
